To find out about any of our cases you can click on it's model number in the left column.

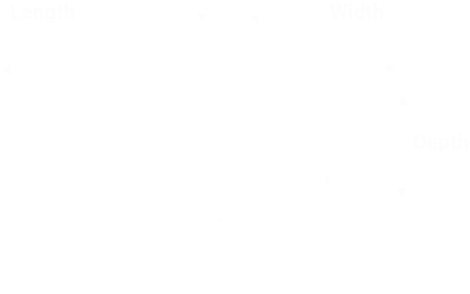

Explorer Case Size Guides
SEARCH BY INTERNAL SIZES
| Model | Internal (mm) | External (mm) | Int. Depth (mm) | Weight (mm) | Wheels | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | W | D | L | W | D | Lid | Base | Empty | W/Foam | ||
| Explorer 4216HL Case | 420 | 300 | 160 | 457 | 366 | 183 | 35 | 125 | 2.6 | 3.2 | No |
| Explorer 4412HL Case | 445 | 345 | 125 | 485 | 414 | 149 | 47 | 78 | 2.50 | 2.92 | No |
| Explorer 4419HL Case | 445 | 345 | 190 | 485 | 414 | 212 | 47 | 143 | 2.91 | 3.58 | No |
| Explorer 4820HL Case | 480 | 370 | 205 | 520 | 440 | 230 | 50 | 155 | 3.41 | 4.17 | No |
| Explorer 5218HL Case | 520 | 285 | 180 | 550 | 350 | 200 | 30 | 150 | 3.75 | 4.30 | No |
| Explorer 5221HL Case with Wheels | 520 | 285 | 205 | 550 | 350 | 225 | 55 | 150 | 3.90 | 4.50 | No |
| Explorer 3823HL Case | 380 | 270 | 230 | 420 | 340 | 252 | 57 | 173 | 2.59 | 3.09 | No |
| Explorer 3005 Case | 300 | 210 | 58 | 326 | 269 | 75 | 20 | 38 | N/A | No | |
| Explorer 7814HL Case | 780 | 350 | 145 | 846 | 427 | 167 | 42 | 103 | 5.50 | 6.40 | No |
| Explorer 9433 Case with Wheels | 936 | 350 | 330 | 1009 | 412 | 354 | 42 | 288 | 10.2 | 12.7 | No |
| Explorer 5140 Tool Case with Wheels (Drawers Version) | 516 | 296 | 402 | 581 | 381 | 455 | N/A | N/A | N/A | No | |
| Explorer 5116 Case | 516 | 296 | 160 | 585 | 386 | 198 | 50 | 110 | 3.3 | 3.9 | No |
| Explorer 3110HL Case | 310 | 100 | 108 | 336 | 159 | 127 | 20 | 88 | 0.95 | 1.05 | No |
| Explorer 5212HL Case | 520 | 285 | 125 | 550 | 350 | 145 | 30 | 95 | 2.35 | 2.85 | No |
| Explorer 5215HL Case | 520 | 285 | 150 | 520 | 350 | 170 | 55 | 95 | 2.55 | 3.05 | No |
| Explorer 15416 Case with Wheels | 1540 | 377 | 160 | 1629 | 456 | 183 | 42 | 118 | 11.3 | 13.4 | No |
| Explorer 5122 Case with Wheels | 517 | 277 | 217 | 546 | 347 | 247 | 50 | 167 | 6 | 7 | No |
| Explorer AIBOX3.E | 467 | 255 | 30 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | No |
| Explorer 7726 Case with Wheels | 770 | 580 | 265 | 836 | 641 | 304 | 90 | 175 | 10.30 | 12.60 | No |
| Explorer AIBOX3.F | 467 | 255 | 30 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | No |
| Explorer AIBOX6.E | 467 | 255 | 60 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | No |
| Explorer AIBOX6.F | 467 | 255 | 60 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | No |
| Explorer AIBOX9.E | 467 | 255 | 95 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | No |
| Explorer AIBOX9.F | 467 | 255 | 95 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | No |
